Parts list
|
NO. |
Part Number |
quantity |
Product Name |
|
1 |
86374030 |
1 |
Body |
|
2 |
86385135 |
1 |
Body |
|
3 |
86385119 |
1 |
Body including |
|
4 |
86264678 |
1 |
Helicoil thread UNF 3/4” |
|
5 |
86374055 |
3 |
Cover |
|
6 |
86376191 |
3 |
O’ring |
|
7 |
86634003 |
3 |
Diaphragm kit |
|
8 |
86241403 |
3 |
BS ring |
|
9 |
86265048 |
3 |
Inflating screw |
|
10 |
86223419 |
2 |
Pin |
|
11 |
86265071 |
8 |
O’ring |
|
12 |
86326493 |
3 |
O’ring |
|
13 |
86570447 |
10 |
Tight seal |
|
14 |
86221413 |
4 |
UNF 3/4”, socket head screw |
|
15 |
86223971 |
1 |
Cylinder |
|
16 |
86223534 |
1 |
Distributor |
|
17 |
86417441 |
1 |
Thrust piston Cyl. E |
|
18 |
86578580 |
1 |
Strike piston |
|
19 |
86324738 |
1 |
Cover |
|
20 |
86265071 |
1 |
O’ring |
|
21 |
86326493 |
1 |
O’ring |
|
22 |
86250867 |
1 |
UNF 3/4”, socket head screw |
|
23 |
86333267 |
1 |
Plug |
|
24 |
86281979 |
1 |
O’ring |
|
25 |
86223914 |
1 |
Cover |
|
26 |
86220944 |
1 |
Valve |
|
27 |
86417425 |
1 |
Push rod |
|
28 |
86417433 |
1 |
Lining |
|
29 |
86475746 |
1 |
Motor body including |
|
30 |
86221561 |
3 |
Guiding ring |
|
31 |
86223997 |
1 |
Snap ring |
|
32 |
86264678 |
2 |
Helicoil thread UNF 3/4” |
|
33 |
86223476 |
1 |
Spring |
|
34 |
86220811 |
2 |
Needle bearing |
|
35 |
86222825 |
1 |
O’ring |
|
36 |
86265071 |
1 |
O’ring |
|
37 |
86221918 |
2 |
O’ring |
|
38 |
86220209 |
1 |
Shaft |
|
39 |
86344199 |
2 |
Distribution plate |
|
40 |
86261344 |
2 |
O’ring |
|
41 |
86318516 |
2 |
Pin |
|
42 |
86223559 |
1 |
Ball bearing |
|
43 |
86344116 |
1 |
Bearing holder plate |
|
44 |
86313046 |
1 |
Nut |
|
45 |
86302841 |
1 |
Pin |
|
46 |
86222668 |
1 |
O’ring |
|
47 |
86313053 |
1 |
Cover |
|
48 |
86585841 |
1 |
Cartridge (type 075) |
|
49 |
86366259 |
1 |
Slider |
|
50 |
86366242 |
1 |
Lining |
|
51 |
86366283 |
1 |
Spring |
|
52 |
86234994 |
1 |
O’ring |
|
53 |
86234853 |
1 |
O’ring |
|
54 |
86288131 |
1 |
BS ring |
|
55 |
86312196 |
1 |
Adjusting shim |
|
56 |
86475001 |
1 |
Thrust housing including |
|
57 |
86264678 |
4 |
Helicoil thread UNF 3/4” |
|
58 |
86655354 |
1 |
Oiler |
|
59 |
86223419 |
1 |
Pin |
|
60 |
95848107 |
2 |
UNF 3/4”, socket head screw |
|
61 |
86322518 |
3 |
Valve |
|
62 |
86570447 |
3 |
Tight seal |
|
63 |
86616935 |
1 |
Face sea |
|
64 |
86502234 |
1 |
O’ring |
|
65 |
86578895 |
1 |
O’ring |
|
66 |
86611647 |
1 |
Front lining |
|
67 |
86611621 |
1 |
Rear lining |
|
68 |
86611654 |
1 |
Composite seal |
|
69 |
86220258 |
1 |
Snap ring |
|
70 |
86611639 |
1 |
Hydraulic stop piston |
|
71 |
86611662 |
1 |
Seal |
|
72 |
86345022 |
1 |
Guide |
|
73 |
86221652 |
1 |
Centering part |
|
74 |
86221645 |
1 |
Centering part |
|
75 |
86223492 |
1 |
Shank stop |
|
76 |
86220241 |
1 |
Ring |
|
77 |
86221603 |
1 |
Needle bearing |
|
78 |
86313087 |
1 |
Shaft |
|
79 |
86484755 |
1 |
Ball bearing |
|
80 |
86223435 |
3 |
Tight ring |
|
81 |
86313095 |
2 |
Tight ring |
|
82 |
86313103 |
1 |
Tight ring |
|
83 |
86232808 |
9 |
O’ring |
|
84 |
86292786 |
3 |
O’ring |
|
85 |
86613254 |
2 |
Seal |
|
86 |
86223021 |
1 |
Needle bearing |
|
87 |
86501061 |
1 |
Restrictor |
|
88 |
86373115 |
2 |
( Helicoil thread UNF 1”1/8 |
|
89 |
86220274 |
5 |
O’ring |
|
90 |
86223443 |
4 |
UNF 3/4”, hexa. screw |
|
91 |
86222882 |
|
|
|
92 |
86511466 |
1 |
Gear including : |
|
93 |
86511441 |
1 |
Splined nut |
|
94 |
86220779 |
|
|
|
95 |
86221116 |
1 |
Ring |
|
96 |
86221595 |
1 |
Needle bearing |
|
97 |
86221678 |
1 |
Ring |
|
98 |
86313129 |
1 |
Gear |
|
99 |
86223021 |
1 |
Needle bearing |
|
100 |
86607942 |
1 |
Housing |
|
101 |
86223286 |
2 |
Tight seal |
|
102 |
86578689 |
1 |
O’ring |
|
103 |
86578697 |
1 |
O’ring |
|
104 |
86578705 |
1 |
O’ring |
|
105 |
86578713 |
1 |
O’ring |
|
106 |
86339272 |
1 |
Rear lining |
|
107 |
86220746 |
2 |
Seal |
|
108 |
86353356 |
1 |
Front lining |
|
109 |
86331121 |
2 |
Lip seal |
|
110 |
86353083 |
2 |
Lip seal |
|
111 |
86223716 |
2 |
Gudgeon |
|
112 |
86271558 |
2 |
Nut |
|
113 |
86352416 |
1 |
|
|
114 |
86353323 |
1 |
Front guide including : |
|
115 |
86511482 |
1 |
( Guiding ring |
|
116 |
86235538 |
1 |
( Snap ring |
|
117 |
86235355 |
1 |
O’ring |
|
118 |
86578671 |
1 |
seal |
|
119 |
86621596 |
1 |
Shank male Ø 51, T51 |
Our advantage: original system data to ensure accurate size

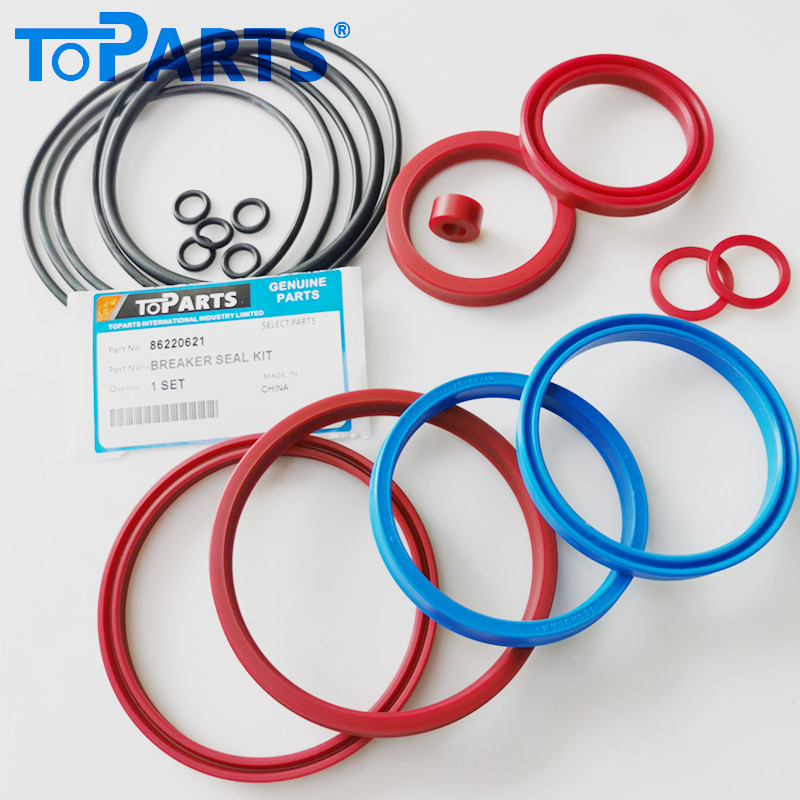

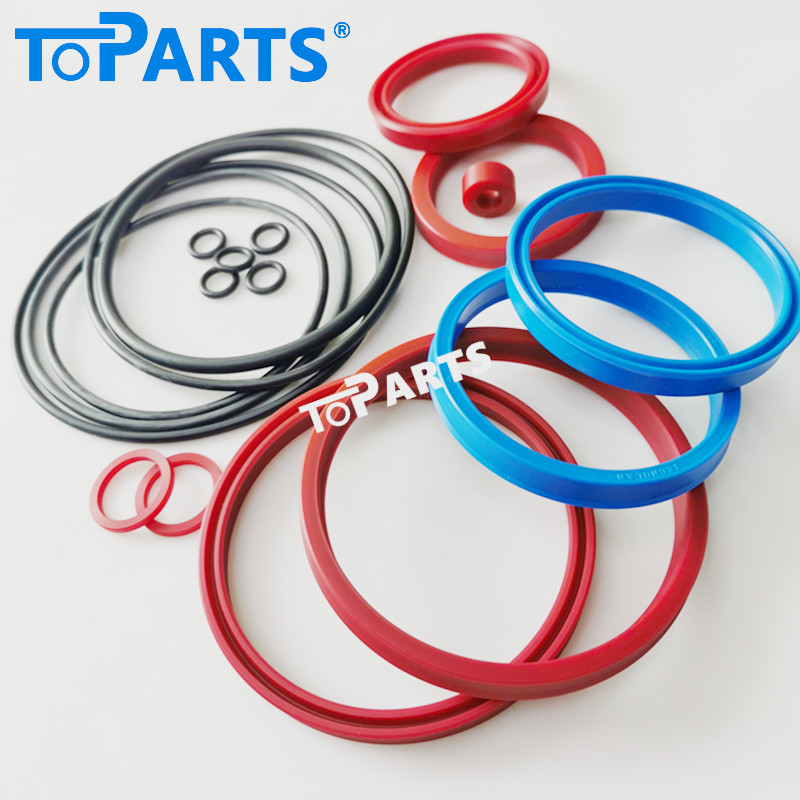

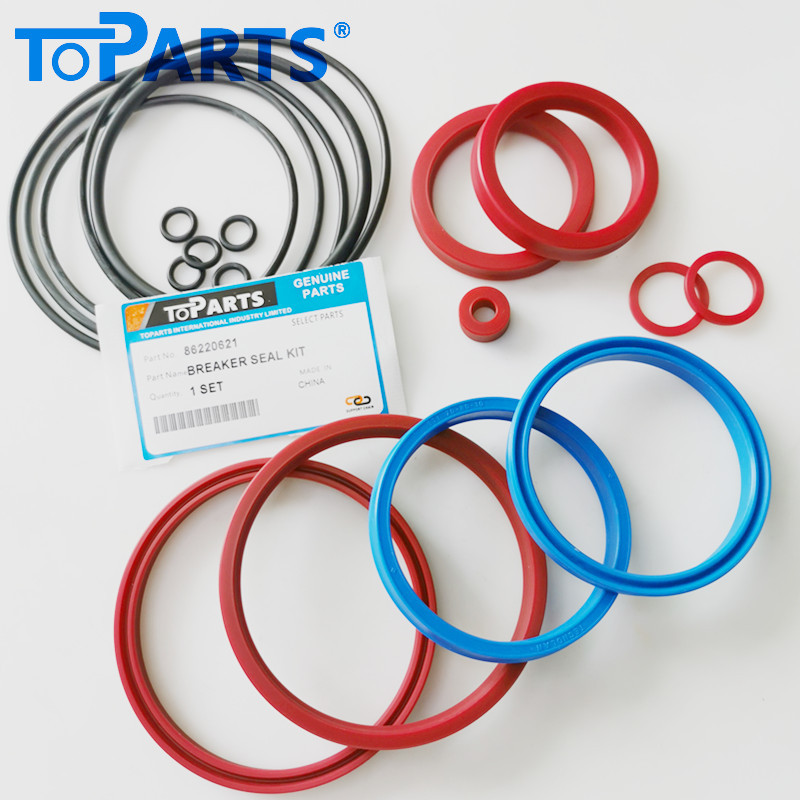

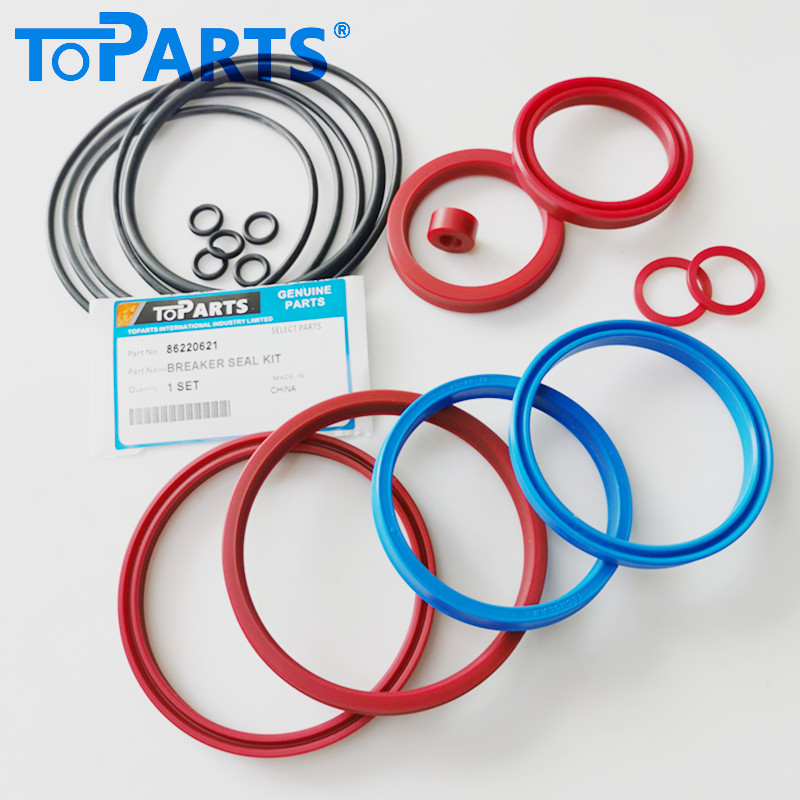

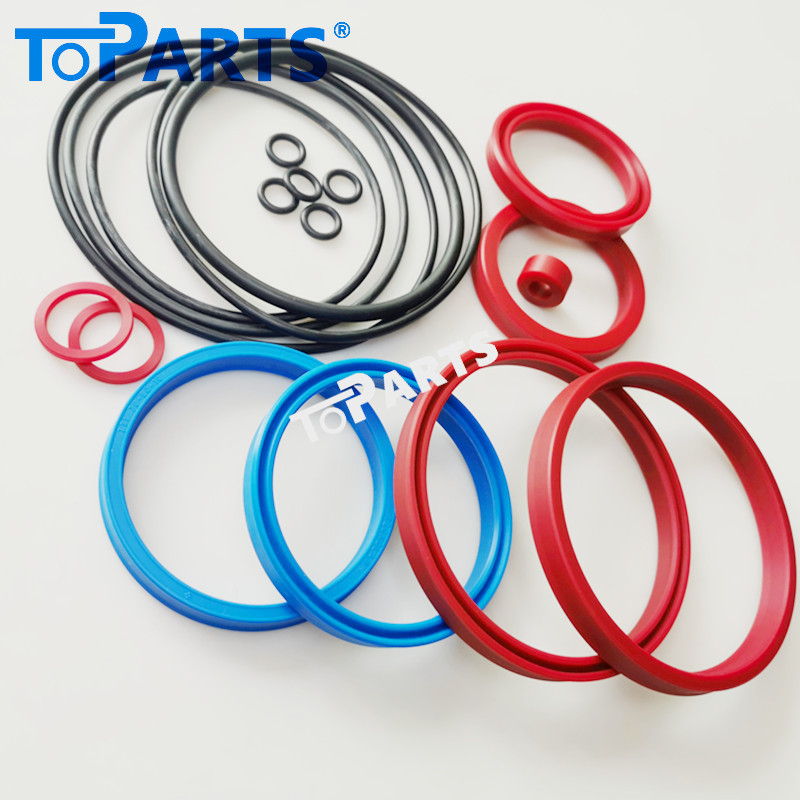

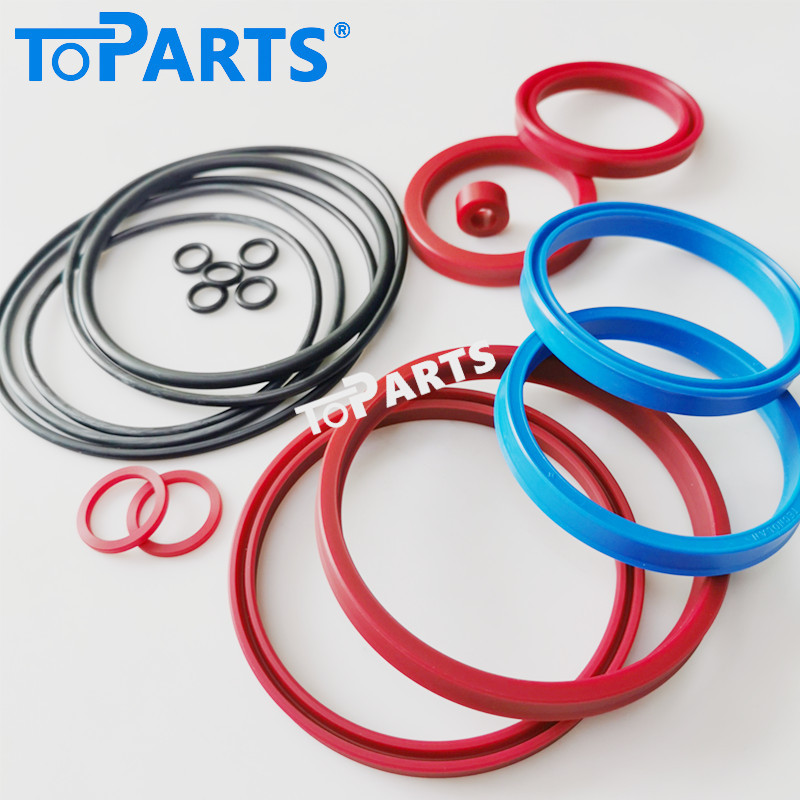

Toparts Hydraulic Drifter Seal Kits for Montabert HC120 & HC150
